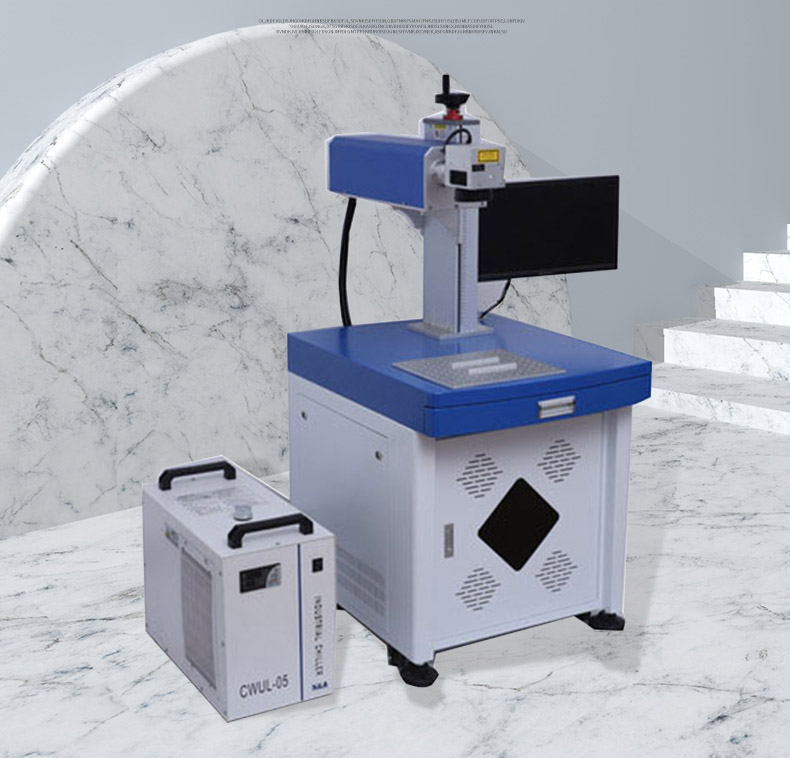

紫外激光打標機
紫外打標機
特點
免維護無耗材
脈沖頻率可調
長壽命
全中文頁面
打標清晰
雕刻深度可控
小功率有風冷方式、大功率全部采用水冷方式
SMALL POWERHASAIR COOLING MODE.AND HIGHPOWER ALL ADOPTS WATER COOLING MODE
免維護，無耗材，設備運行成本極低
MAINTENANCE FREE, NO CONSUMABLES.AND THE OPERATION COST OF THE EQUIPMENT IS VERYLOW
脈沖、頻率可調，多樣性打標效果THE LASER PULSE FREQUENCY IS HIGHAND THE MARKING SPEED IS FAST
SMALL POWERHASAIR COOLING MODE.AND HIGHPOWER ALL ADOPTS WATER COOLING MODE
免維護，無耗材，設備運行成本極低
MAINTENANCE FREE, NO CONSUMABLES.AND THE OPERATION COST OF THE EQUIPMENT IS VERYLOW
脈沖、頻率可調，多樣性打標效果THE LASER PULSE FREQUENCY IS HIGHAND THE MARKING SPEED IS FAST
激光器使用壽命高達2-3萬小時需要常溫、穩定的運行環境
THE SERVICELIFE OF THELASERISUPTO20000-30000 HOURS NORMAL TEMPERATURE AND STABLE OPERATIONENVIRONMENT IS REQUIRED
標刻軟件為全中文界面，操作簡便直觀
THE MARKING SOFTWARE HAS AFULL CHINESE INTERFACE, WHICH IS SIMPLE ANDINTUITIVE TO OPERATE
雕刻深淺隨意控制，能適應多種產品
THE DFPTHOE CARVNGCAN BE CONTROLLEDATWILLWHICH CAN ADAPT TOA VARIETY OF PRODUCTS
標刻內容靈活可變，線條精美
THE MARKING CONTENT ISFLEXIBLE AND CHANGEABLE, AND THE LINESARE EXOUISITE
THE SERVICELIFE OF THELASERISUPTO20000-30000 HOURS NORMAL TEMPERATURE AND STABLE OPERATIONENVIRONMENT IS REQUIRED
標刻軟件為全中文界面，操作簡便直觀
THE MARKING SOFTWARE HAS AFULL CHINESE INTERFACE, WHICH IS SIMPLE ANDINTUITIVE TO OPERATE
雕刻深淺隨意控制，能適應多種產品
THE DFPTHOE CARVNGCAN BE CONTROLLEDATWILLWHICH CAN ADAPT TOA VARIETY OF PRODUCTS
標刻內容靈活可變，線條精美
THE MARKING CONTENT ISFLEXIBLE AND CHANGEABLE, AND THE LINESARE EXOUISITE
產品參數
| 品牌 | 星澤光電 | 功率 | 3/5/10/15/25W |
| 激光波長 | 355NM | 脈寬 | 15-100ns |
| 單脈沖能量 | 0.25-1.2mJ | 光束質呈 | M2≤1.2 |
| 脈沖重復頻率 | l-50kHz | 最小線寬 | 0.01mm |
| 打標范圍 | 70*70-300*300mm可選 | ||
| 雕刻線速 | 100-1000字符/秒（不同配置場鏡110mm岸線字體，字高1mm） | ||
| 最小字符 | 0.2mm | 重復精度 | 0.01mm |
| 雕刻深度 | ≤0.5mm,視材料而定 | 整機耗電 | W1500W |
| 用電需求 | 220V/50HZ | 整機冷卻方式 | 水冷 |
| 運行環境溫度 | 15-35°C | ||
樣品展示
